How to Measure

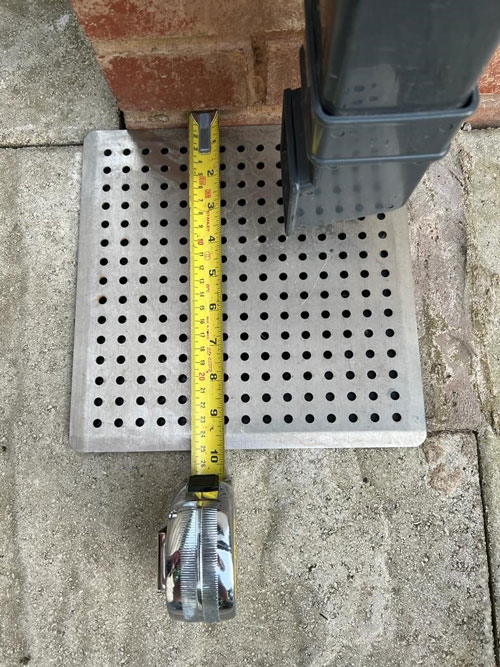

To help with measuring the area for your new drain, please see the images below:

Measuring Your Drain: A Six Step Guide!

1 Determine if the cover will fit inside a raised lip or overlap the edges. If the cover is inside the lip, then make a small allowance so the cover is not too tight.

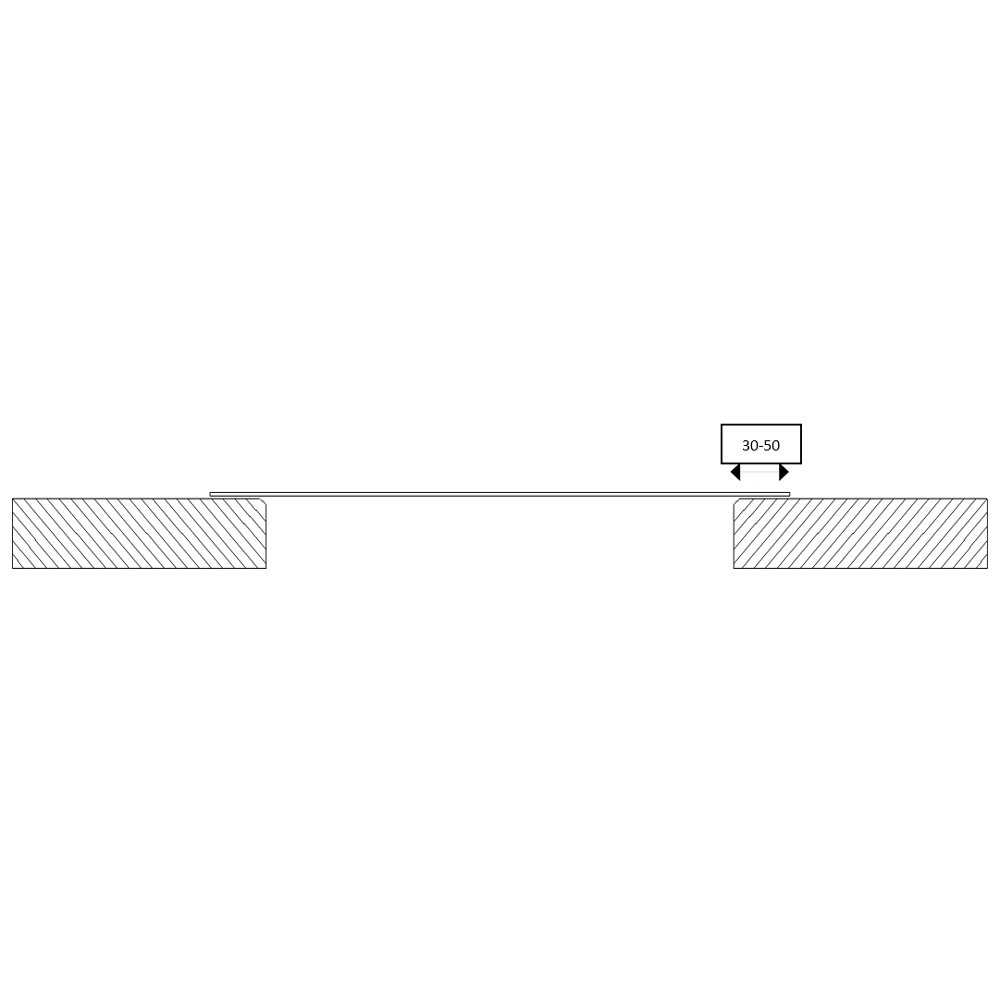

2 If the cover is sitting on top of a flat surface, then add sufficient overhang to prevent the cover from slipping into the drain—maybe 30 to 50 millimeters.

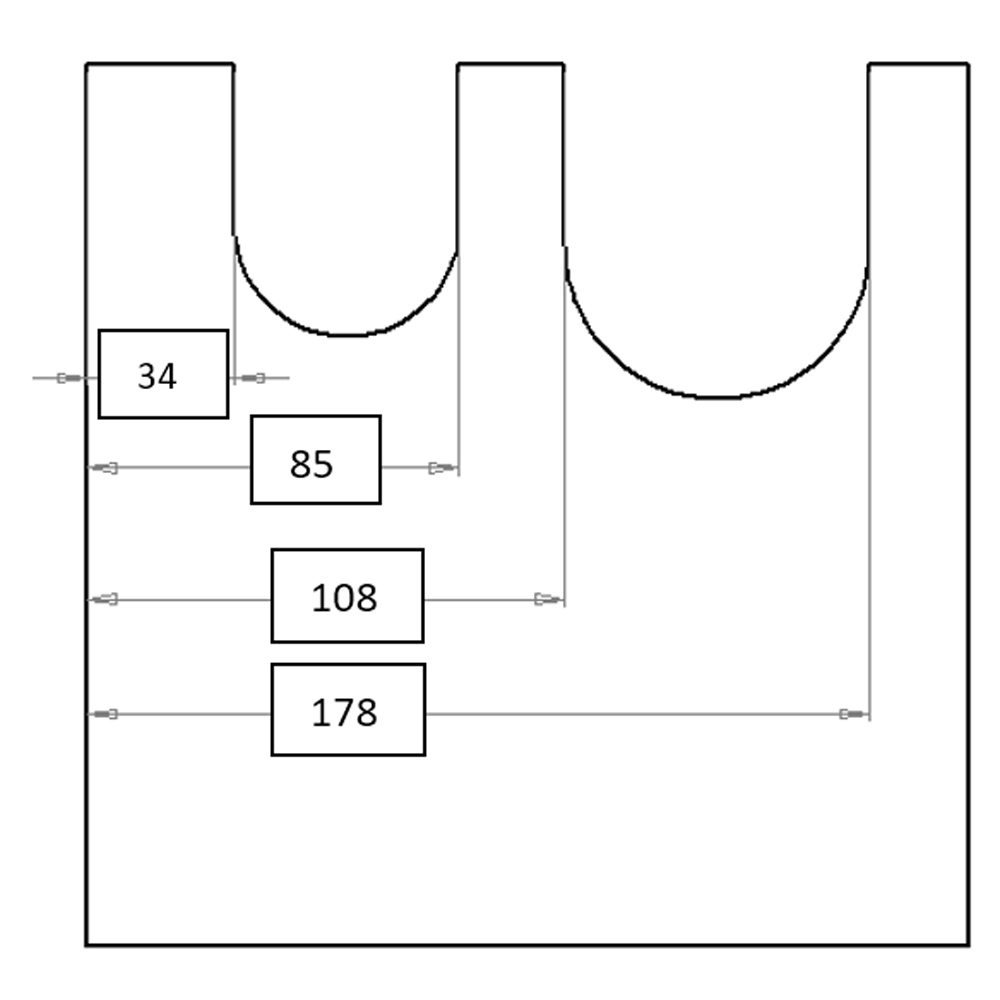

3 For cutouts, always measure from one edge of the drain or plate.

4 Always allow a small amount for clearance around pipes so that it is easier to fit in place. 5 mm should be enough.

5 When measuring downturns, check the height and subtract 5 mm so that the cover sits on the drain top and not on the floor.

6 When measuring upstands, check the height and decide if fixing holes is required for safety or security.

Still having trouble measuring?

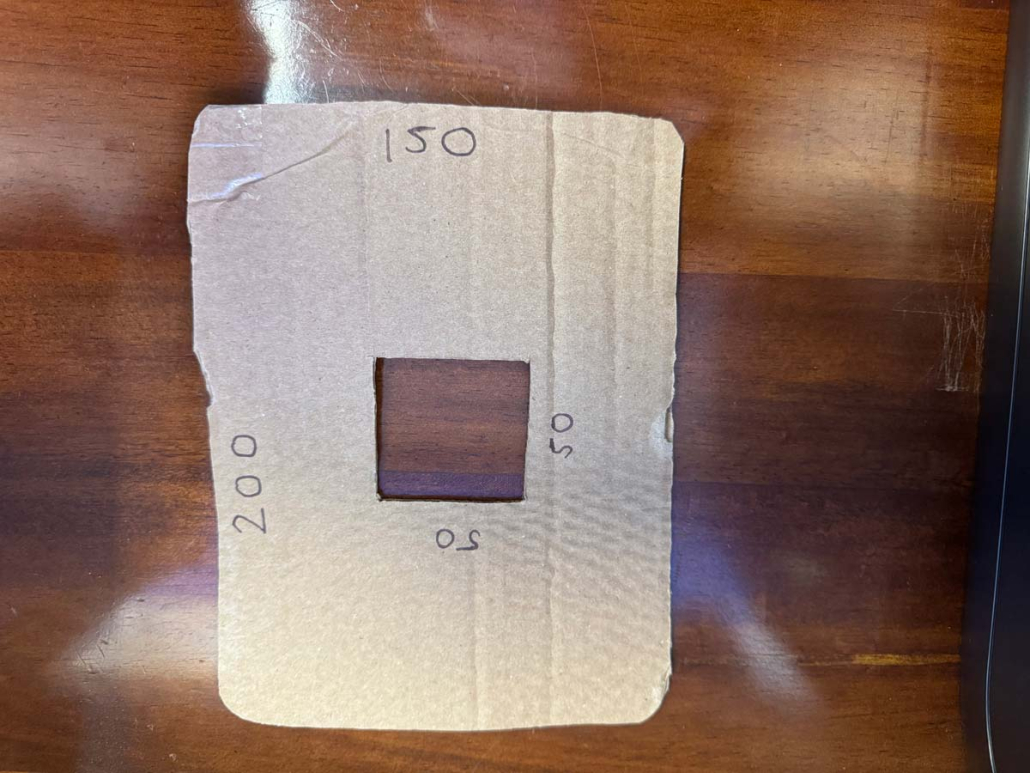

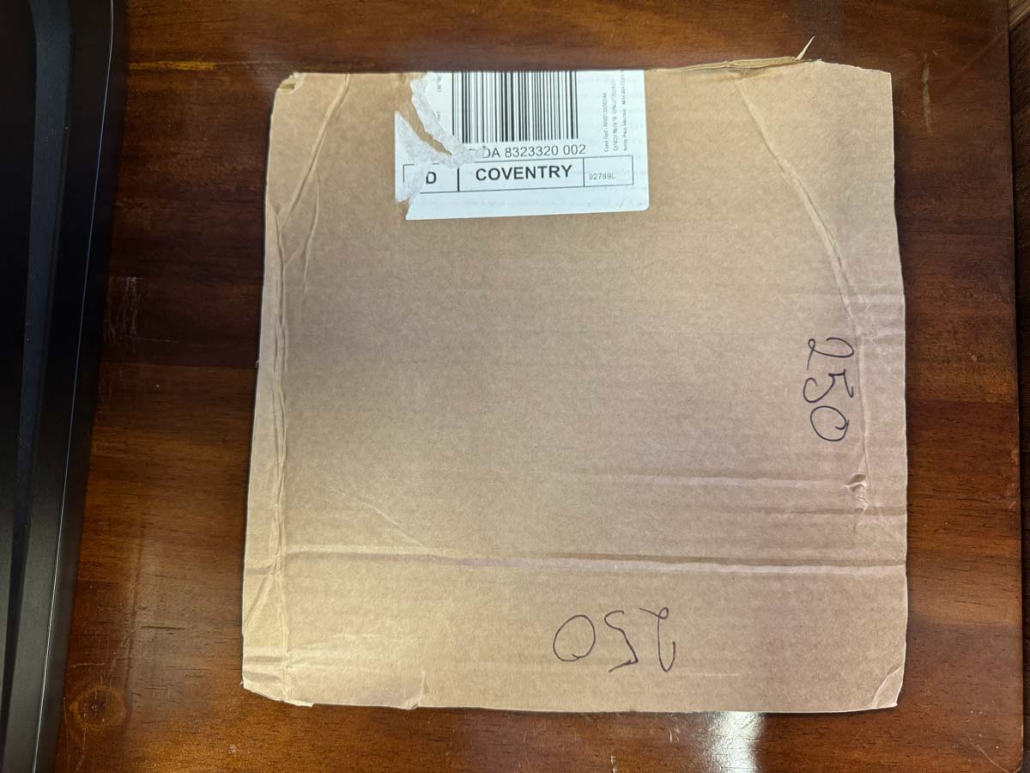

Some of our customers have sent us cardboard templates when they are unsure how to measure, speak to us today about sending one in to us!
